This article recommends Panasonic's thick film high-power current detection resistor: ERJ-6CWFR011V 0805 0.011R 0.5W 1%, brand: (Sanasonic). This product adopts thick film production technology, with high reliability, low temperature coefficient, low inductance, and extremely high cost-effectiveness. Widely used in various types of battery protection boards and motor drives.
Thick film high-power current detection chip resistor is an electronic component used for voltage and current division in circuits. It is designed in the shape of a patch and can be easily soldered onto a circuit board. Current detection patch resistors are usually made of metal film materials, which have stable resistance values and good temperature characteristics. Its function is to distribute the input current or voltage to different paths, so that different parts of the circuit can obtain the required current or voltage. Panasonic thick film high-power current detection resistor: ERJ-6CWFR011V 0805 0.011R 0.5W 1%, widely used in lithium-ion battery protection boards and other small volume battery protection boards, mainly in products such as laptops, wearables, computer peripherals, etc. Below is a detailed breakdown and explanation of the parameters of the Panasonic thick film high-power current detection resistor: ERJ-6CWFR011V 0805 0.011R 0.5W 1%.
Shunhai Technology recommends the selection information and small batch purchase of shunt surface mount resistors:
| brand |
| (Sanasonic) |
| model |
ERJ-6CWFR011V |
| size |
0805 |
| resistance |
0.011R/11mR |
| accuracy |
1% |
| temperature coefficient |
±300ppm |
| material |
thick film |
| power |
0.5W |
| Minimum packaging |
5000PCS |
| Data Download |
|

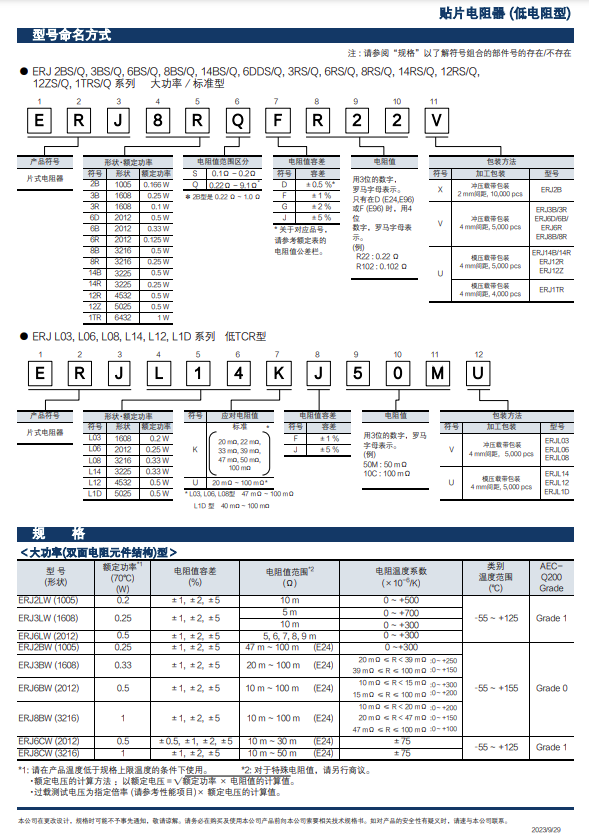

(Sanasonic) Thick film high-power current detection resistor: ERJ-6CWFR011V 0805 0.011R 0.5W 1%. The approximate player manual is as follows. For more detailed parameters, please consult customer service and sales.
