EVER OHMS metal film resistor is an electronic component produced by EVER OHMS Technology (Ever Ohms), with a variety of models and specifications, and is widely used in electronic equipment. These resistors are made of metal film materials, which can effectively control the flow of current and voltage changes in the circuit, providing precision, stability and durable performance characteristics. Key characteristics of EVER OHMS metal film resistors include low resistance, low temperature coefficient (TCR), low inductance, good long-term stability, and compliance with ROHS standards and the automotive industry certification standard AEC-Q200. In addition, they also have high surge resistance, high power and other characteristics.
These resistors are usually available in small size packages such as 0603 and 0805 and are suitable for a variety of precision and high-performance electronic applications.
EVER OHMS technology focuses on material selection and manufacturing process, using high-quality resistance materials such as metal film, carbon film, metal foil, etc., and has advanced manufacturing process, including microelectronics manufacturing technology and precision machining technology, to ensure the high quality and reliability of products. The manufacturing process of metal film resistors is flexible, which can not only adjust its material composition and film thickness, but also adjust the resistance value by grooving, so it can be made into a good performance and a wide range of resistance values.

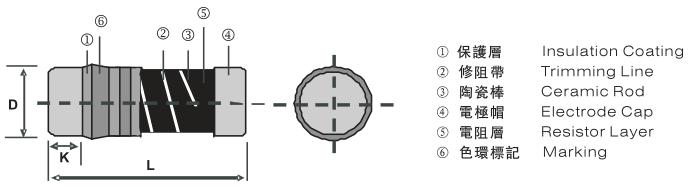

EVER OHMS metal film resistor is an electronic component made of metal film material, which is widely used in electronic equipment to control the current flow and voltage changes in the circuit. These resistors are available in a variety of models and specifications to meet the needs of different circuits and applications. Metal film resistor is a kind of film resistor, through high temperature vacuum coating technology to nickel-chromium or similar alloy closely attached to the surface of the porcelain rod to form a skin film, after cutting and adjusting the resistance value, in order to achieve the final required precision resistance value.
The EVER OHMS metal film resistor series includes TRL series standard volumes (e.g. 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512) and long electrode volumes (e.g. 0508, 0612, 1210, 1225). These resistors have the advantages of high precision, good stability and low temperature coefficient, and are suitable for different application scenarios. For example, the EVER OHMS 0603 high-precision film patch resistor has become the first choice of many circuit designers for its excellent performance. In addition, EVER OHMS also offers the surge resistance metal film patch resistor TGL2512 package series, which uses special metal film materials and advanced production process to have excellent surge resistance.
In the selection, it is necessary to consider the power of the resistance, resistance range, accuracy, temperature coefficient and other factors. For example, for application scenarios with power below 1W, metal film resistors are preferred. For power applications of 1W and above, metal oxide film resistors are preferred. In addition, it is also necessary to select the appropriate package size and series according to the specific application requirements, as shown in the depth analysis of the TRL1225FR series package size selection, these resistors have become the first choice of many engineers with their excellent performance and wide range of applications.
In short, the EVER OHMS metal film resistor series provides a variety of options to meet the needs of different electronic devices and circuit designs. In the selection, the performance parameters, application requirements and cost of the resistance should be considered comprehensively to ensure that the selected resistance can provide the best performance and reliability.
"
